The 2025 Gulf Stream Trailmaster 248BH is a popular, lightweight, and economical travel trailer designed specifically as a family-friendly bunkhouse model. It is often cross-listed or shares specifications with the Gulf Stream Ameri-Lite Ultra Lite 248BH and Kingsport Ultra Lite 248BH, as these models frequently use the same foundational floorplan and specs.
The primary appeal of the 248BH is its ability to sleep a large group while maintaining a low weight for easy towing.
🏕️ Key Specifications
This model is categorized as an Ultra Lite travel trailer, making it towable by many half-ton trucks and some larger SUVs.
| Specification | Value (Approx.) |
| Exterior Length | 26 ft 7 in |
| Exterior Height | 10 ft 4 in |
| Exterior Width | 8 ft 0 in |
| Dry Weight (UVW) | 3,899 lbs |
| Hitch Weight | 500 lbs |
| Cargo Capacity (CCC) | 3,601 lbs |
| Sleeps | Up to 7 (or 8, depending on dinette/bed options) |
| Slide-outs | 0 (No slide-out) |
| Fresh Water Capacity | 23 – 30 gallons (Varies by package) |
| Grey Water Capacity | 36 gallons |
| Black Water Capacity | 36 gallons |
| A/C BTU | 13,500 BTU (Optional 15,000 BTU) |
| Furnace BTU | 20,000 BTU |

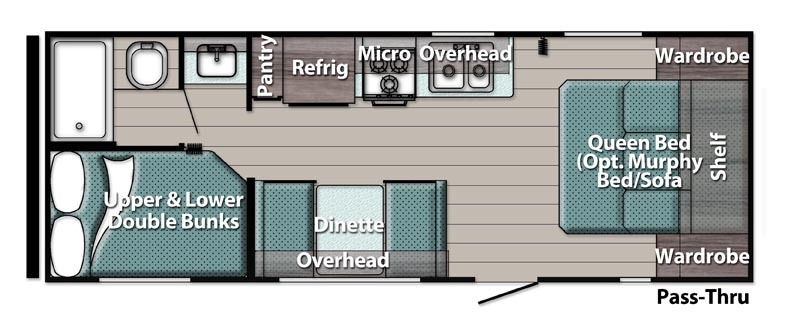

🛌 Floor Plan Highlights (248BH)
The floor plan is a classic bunkhouse layout designed for maximum sleeping capacity in a compact, non-slide floorplan.
- Front Bedroom: Features a Queen Bed in a semi-private setup. Some variations offer an optional Murphy Bed in place of the permanent queen bed, which allows the space to be used as a sofa/lounge area during the day, creating more living space.
- Rear Bunkhouse: The rear of the trailer features Double-Size Bunks (two full-sized bunks), capable of sleeping up to four children or two adults comfortably.

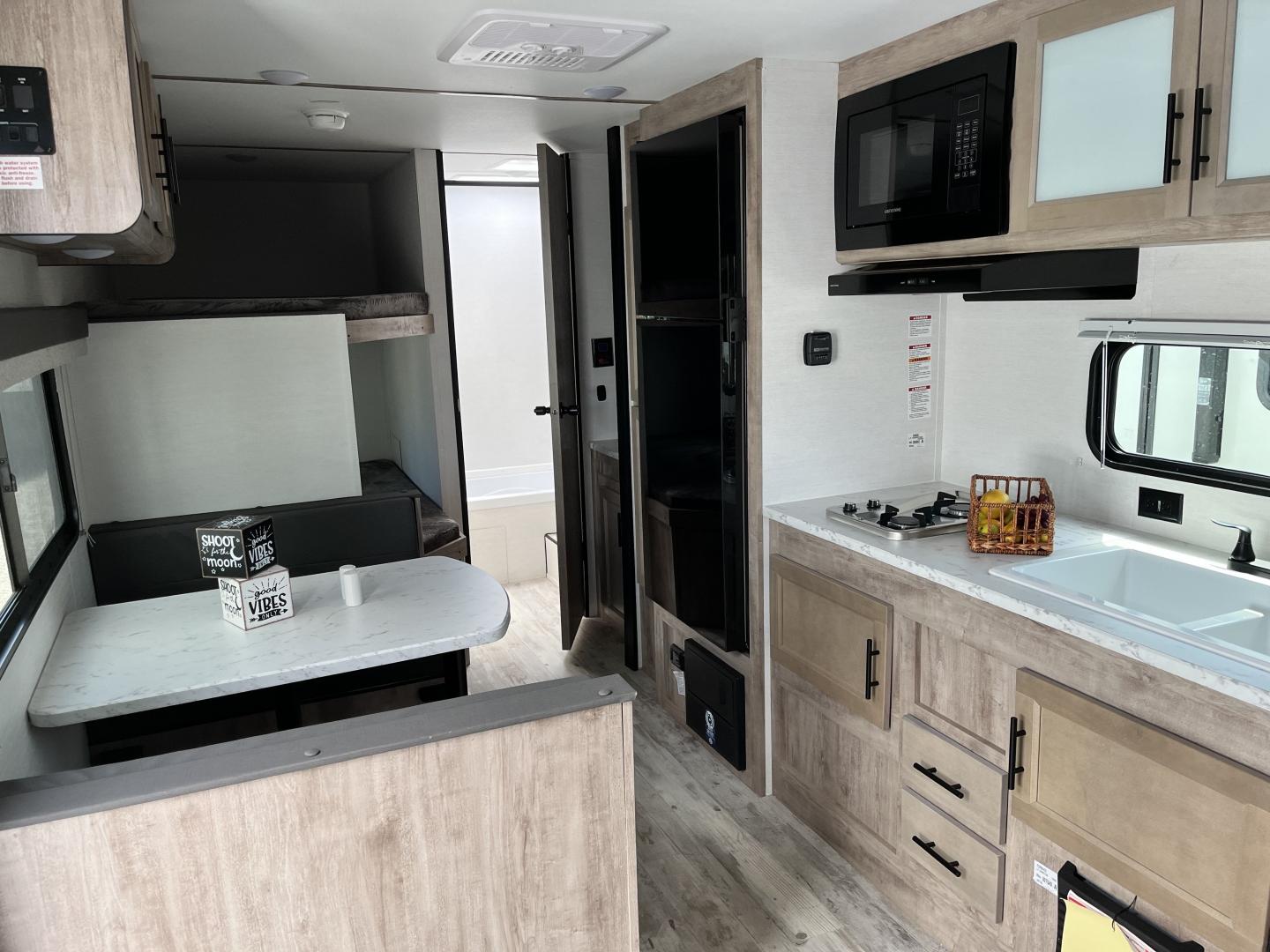

- Dinette: A Booth Dinette provides dining space and converts into an additional sleeping area.

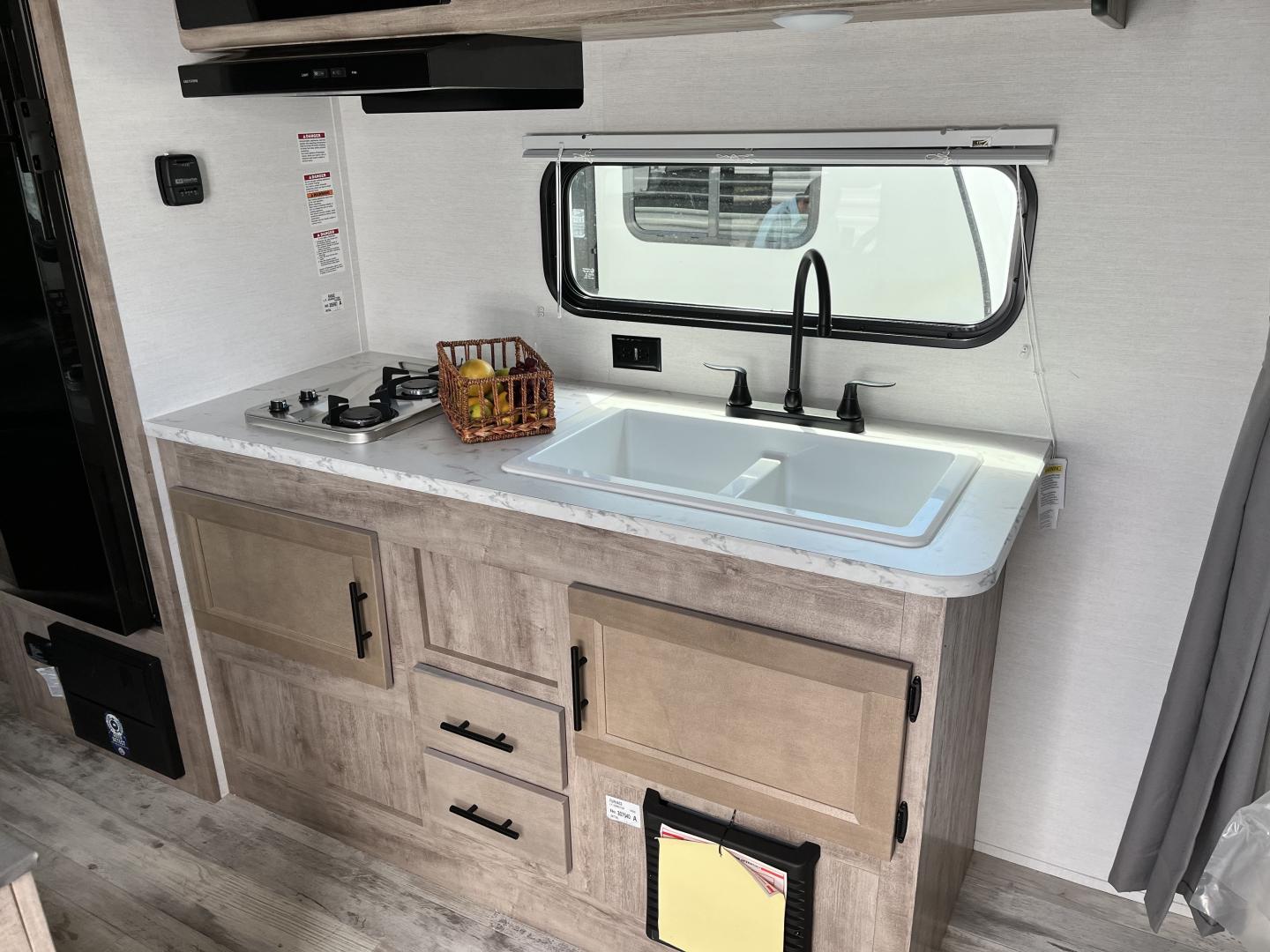

- Kitchen: The central kitchen includes a 2-burner cooktop, a microwave, a pantry, and a 6 cu. ft. Two-Door Refrigerator (some newer models may feature a larger 10 cu. ft. 12V refrigerator depending on the package).
- Bathroom: The rear corner features a full bath with a tub/shower combo and a toilet. An adjacent sink and mirror are located outside the main bath door, allowing two people to prep at the same time.
⭐ Key Features
- Lightweight Construction: Built with an aluminum exterior and Unibody Construction with steel hurricane straps for added durability while keeping the Dry Weight under 4,000 lbs.
- Modern Amenities: Typically includes a Tankless Water Heater, a Power Awning with LED lighting, a central control panel, and Tech-Ready Upgrades (Solar Panel Prep, Backup Camera Hookups, USB ports).

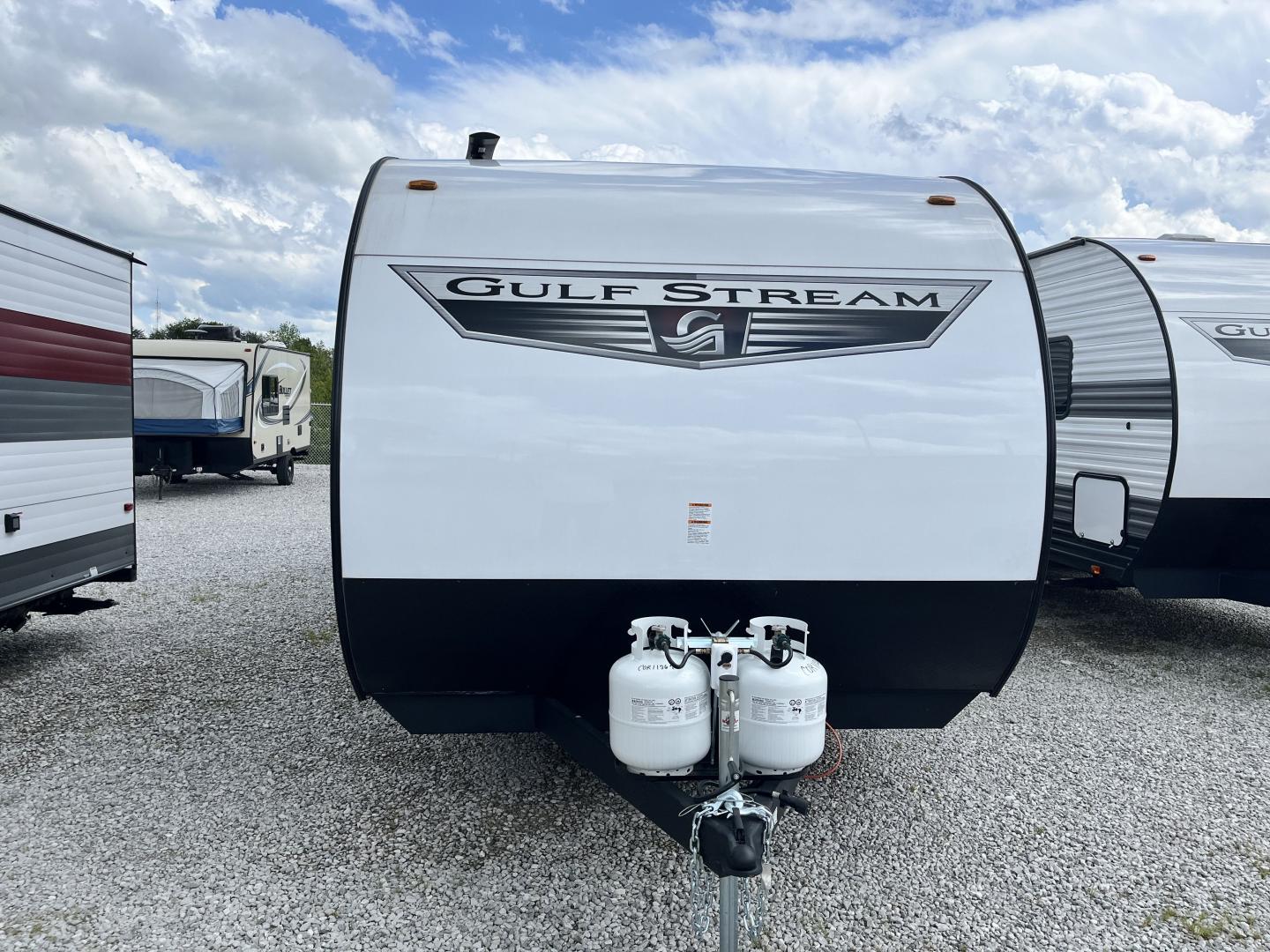

- Durable Exterior: Features a Diamond Plate lower front to protect against road debris.
- Easy Setup: Equipped with stabilizer jacks for quick camp setup.
The 2025 Gulf Stream Trailmaster 248BH is an excellent, budget-conscious choice for families who prioritize low towing weight and high sleeping capacity.
